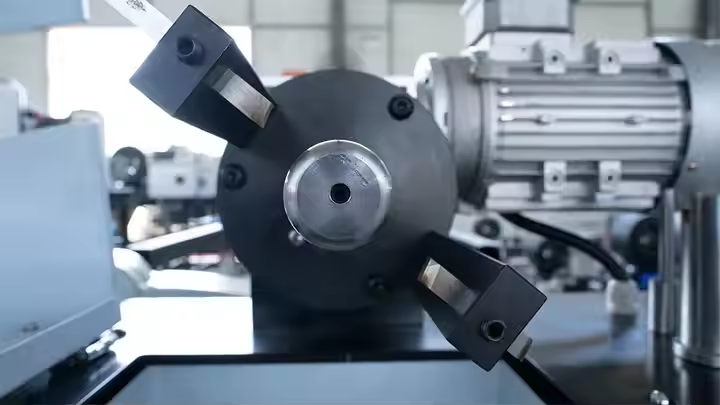

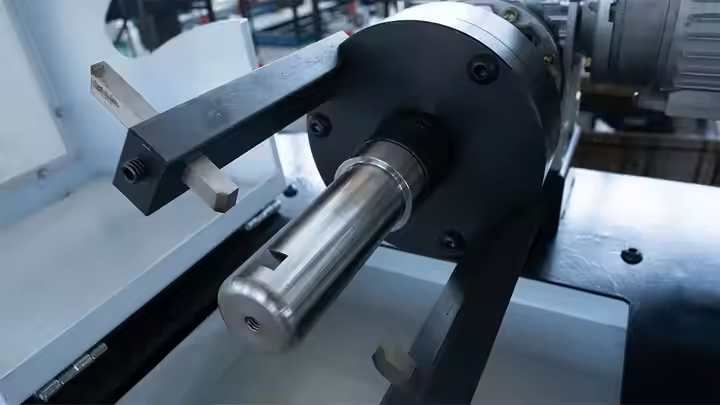

SK50 Automatic Hydraulic Hose Skiving Machine 2″4SP SKIVER

Description

Shanghai APT SK50 automatic hose skiving machine is mainly used to skive the inner and outer rubber layers of hydraulic hoses. The skiving is fast, neat and nice. The skive range is 6~80mm. The voltage can be customized.

Hose Sizes:

  •  6-80mm hydraulic hose

Advantages

  • 1) Blade: the special blade for cutting hydraulic hoses achieves a quick cutting process that is dust and odor free.
  • 2) Motor: the motor that is specially designed for cutting machines operates in a smooth manner.

Machine Data

Cutting range 6-80mm
Hose size 2″, 4SP
Blade size 350*2.8*32mm
Drive 3kw
Standard voltage Customized
Control Pneumatic
Weight 92kg
L x W x H 760*555*400mm

Fast Delivery

Hydraulic Crimping Machines-Vertical Crimper Models

Machine Type Model Name Max. inner diameter Crimping Ranges Applications
Manual Service Crimpers SuperKam 60S 2″4SP CRIMPER Industrial hoses: 2½”
Hoses with 2 braided wires: 2″
Hoses with 4 spiral wires: 2″		 3~80mm For crimping high-pressure fuel pipes, industrial hoses, hydraulic hoses and water hoses and automobile air bags.
Service Crimpers SuperKam 60V 2″4SP CRIMPER Industrial hoses: 2½”
Hoses with 2 braided wires: 2″
Hoses with 4 spiral wires: 2″		 3~80mm Outdoor mobile mechanical maintenance. For crimping high-pressure fuel pipes, hydraulic hoses, wire ropes and automobile brake cables.
Side Feed Crimpers DS100  SIDE-FEED CRIMPER Industrial hoses: 2″  4~65mm
Nut Crimpers SuperKam 100C  NUT CRIMPER Hoses with 2 braided wires: 1¼”
Industrial Hoses: 2″		 3~61mm For crimping air-conditioning pipe, breaking hose, turbocharger water pipe, engine oil cooler hose etc.
Production Crimpers（2”-3”） SuperKam 150 2″4SP CRIMPER Industrial hoses: 2½”
Hoses with 2 braided wires: 2″
Hoses with 4 spiral wires: 2″		  3~80mm For crimping high-pressure fuel pipes, industrial hoses, fire sprinkler hoses, automobile brake cables, water hoses, air conditioner hoses and bathroom hoses etc.
Production Crimpers（2”-4”） SuperKam 150D  2″4SP CRIMPER Industrial hoses: 2½”
Hoses with 2 braided wires: 2″
Hoses with 4 spiral wires: 2″		  3~80mm For crimping high-pressure fuel pipes, industrial hoses, fire sprinkler hoses, automobile brake cables, water hoses, air conditioner hoses and bathroom hoses etc.
Production Crimpers（2”-6”） SuperKam 180D 2″6SP CRIMPER Hoses with 2 braided wires: 3″
Hoses with 4 spiral wires: 2″
Hoses with 6 spiral wires: 2″		 3~89mm For crimping high-pressure fuel pipes, industrial hoses, water hoses, automobile air bags and wire ropes etc.
Production Crimpers（2”-7”） SuperKam 80 3″6SP CRIMPER Industrial hoses: 4″
Hoses with 2 braided wires: 3″
Hoses with 4 spiral wires: 3″
Hoses with 6 spiral wires: 3″		 3~95mm Opening diameter of 150m, for crimping high-pressure fuel pipes, industrial hoses, airbrake hoses, air conditioner hoses and bathroom hoses.
Production Crimpers（2”-8”） SuperKam 80D 3″6SP CRIMPER Industrial hoses: 4″
Hoses with 2 braided wires: 3″
Hoses with 4 spiral wires: 3″
Hoses with 6 spiral wires: 3″		   Opening diameter of 150mm, for crimping high-pressure fuel pipes, industrial hoses, airbrake hoses, air conditioner hoses and bathroom hoses.
Heavy Duty（4”-25”） SuperKam 350 6″ HOSE CRIMPER 4 Inch, 6 Inch Industrial Hose Crimping Machine
6 Inch Composite Hose Crimping Machine
Industrial / Composite / Hydraulic Hose Crimping Machine		 10~260mm For crimping large high-pressure fuel pipes, industrial hoses, large water hoses, composite hose, discharge hose etc.
Heavy Duty（4”-25”） SuperKam 390 10″ HOSE CRIMPER 8 Inch & 10 Inch Industrial Hose Crimping Machine
10 Inch Composite Hose Crimping Machine
Industrial / Composite / Hydraulic Hose Crimping Machine		 10~305mm For crimping large high-pressure fuel pipes, industrial hoses, large water hoses, composite hose, discharge hose etc.
Heavy Duty（4”-25”） SuperKam 450 12″ HOSE CRIMPER 10 Inch & 12 Inch Industrial Hose Crimping Machine
10 Inch Composite Hose Crimping Machine
Industrial / Composite / Hydraulic Hose Crimping Machine		 10~315mm For crimping large high-pressure fuel pipes, industrial hoses, large water hoses, composite hose, discharge hose etc.
Heavy Duty（4”-25”） SuperKam 600 14″ HOSE CRIMPER 10 Inch & 12 Inch Industrial Hose Crimping Machine
10 Inch Composite Hose Crimping Machine
Industrial / Composite / Hydraulic Hose Crimping Machine		 36~460mm For crimping large high-pressure fuel pipes, industrial hoses, large water hoses, composite hose, discharge hose etc.
Heavy Duty（4”-25”） SuperKam 680 16″ HOSE CRIMPER 12 Inch, 14 Inch, 16 Inch Industrial Hose Crimping Machine
14 Inch Composite Hose Crimping Machine
Industrial / Composite Hose / HDPE		 36~550mm For crimping large high-pressure fuel pipes, industrial hoses, large water hoses, composite hose, discharge hose etc.
Heavy Duty（4”-25”） SuperKam 880 25″ HOSE CRIMPER 24 Inch Industrial Hose Crimping Machine
24 Inch, 25 Inch Composite Hose Crimping Machine
Hydraulic  / Industrial / Composite Hoses Crimping Machine		 79~720mm For crimping large high-pressure fuel pipes, industrial hoses, large water hoses, composite hose, discharge hose etc.

FAQ

FORGED Steel machine head, 3 times stronger than other machines. CNC operation system, high crimp accuracy not more than 0.01 mm.

Shanghai APT is a high-tech oriented machinery trader with trading license, we invested some high-tech factories to integrate the advanced hose and pipe equipment.

Also we have packaging machine production base in Songjiang Area, Shanghai. Aiming middle and high-end market, Shanghai APT dedicates to provide economical and long stable machines to worldwide clients.

Model Selection: Pls send inquiry to sales@aptmachine.com or whatsapp/wechat us +86-13687112280. Our team will get in touch you in the earliest time.

Pre-sales services: whole day consulting support, sample testing support.

After-sales services: 3 years warranty for crimping machines, free operation guidance by manual, video, email etc. Stock spare parts for clients needs.

  • TUV
  • ISO 9001
  • CE

  • MOQ: 1 SET
  • Delivery Time: If have stock, delivery within 1-3 days after full payment received. If without stock, usually 1-2 weeks for standard machine, customized crimping machines delivery time shall be negotiated.
  • Payment Term: T/T, 30% deposit, 70% balance to be paid before delivery. Special request shall be negotiated.
  • Warranty: 3 Years.

  • Package: Standard export wooden cases, respect client special requests.
  • Delivery Method:  By sea shipping, by air, road transport, negotiable.
  • Trade Term:  EXW, FOB, CIF, DDP etc, negotiable.
